Produkto aprašymas
Pro-Ject Phono Box USB V MM/MC Pradinis Stiprintuvas THD MM/ MC 0.01% / 0.05%, palaikomos operacinės sistemos Windows®, MacOS® ir Linux | Nemokamas Pristatymas

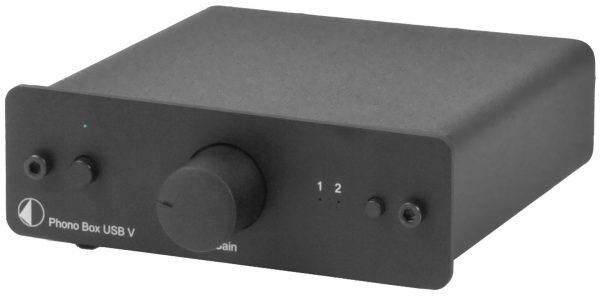

PHONO BOX USB V yra pradinis Phono stiprintuvas, kuris itin gerai sureguliuojamas ir pritaikomas visiems MM ir MC tipo kartridžams.
Phono Box USB V: Top specialist for recording vinyl & line level sources and listening pleasure!
Phono Box USB V is an ideal phono preamplifier for both your hifi system and vinyl or line-level recording to PC or Mac. MM and MC cartridges will be welcome. Input volume can be set to avoid override. The analogue output of Phono Box USB V can easily be connected to a line-input (AUX,…) of your hifi and digitally via USB to your computer. Both outputs can be used simultaneously. Any professional recording software will give best results on Windows and Mac computer systems.
Savybės
- Preamplifier for MM or MC with switch on rear panel
- Precise RIAA equalisation
- Phono/line selector on front
- Record level adjustment
- High quality A/D conversion with USB out to PC/Mac
- Compatible with Windows®, MacOS® & Linux
- SMD technology for shortest signal paths
- Output stage with ultra-low impedance
- DC power supply (< 1 watt standby power)
- Faceplate available in black and silver
- High quality A/D conversion with USB out to PC/Mac
- Compatible with Windows®, MacOS® & Linux
- SMD technology for shortest signal paths
- Output stage with ultra-low impedance
- DC power supply (< 1 watt standby power)
- Faceplate available in black and silver
Specifikacijos
| Load capacitance / impedance | MM: 47K ohms / 120pF MC: 100 ohms / 120pF |
| Gain, MM | 40 dB |
| Output voltage typically | 300 mV / 1 kHz @ 3 mV / 1 kHz (MM input) |
| Gain, MC | 60 dB |
| Gain, line level input | 11 dB |
| Max. output | 9.5 Vrms (1kHz) |
| Noise floor, MM | 94 dB (94 dB - A weighted) |
| Noise floor, MC | 75 dB (75 dB - A weighted) |
| THD, MM/ MC | 0.01% / 0.05% |
| RIAA-equalisation curve accuracy | 20 Hz - 20 kHz / max. 0.5 dB |
| Phono Input / line output | 1 pair RCA phono sockets |
| Line input | 3.5mm jack |
| Output voltage | 0.775 Veff |
| A/D converter | 16-Bit Delta Sigma |
| Sampling rate | 32, 44, 1 and 48 kHz |
| USB output | digital serial data protocol USB 1.1 |
| Operating systems | Windows®, MacOS® & Linux |
| Standby power consumption | < 1 Watt |
| Dimensions W x H x D | 103 x 36 x 104 (115 mm with sockets) |
| Weight | 580 g |
