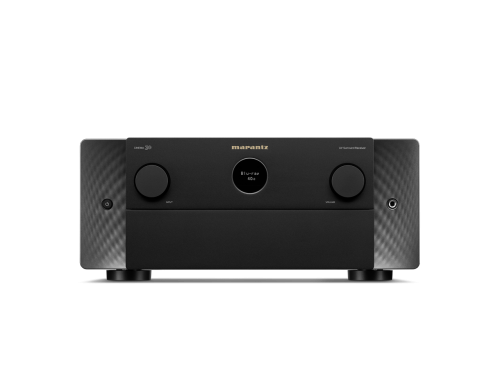

Marantz CINEMA 30, garso stiprintuvas galia: 11 x 140W, 7 HDMI įėjimai (visi 8K) ir eARC. 8K ir "Dolby Atmos, HEOS Built-in | Nemokamas Pristatymas
Naudojant patentuotą technologiją ir aukščiausios kokybės medžiagas, užtikrinančias amžiną stilių, "CINEMA 30" iš naujo apibrėžia kinematografinį garsą geriausiose namų kino sistemose.
Excellence is heard and seen. CINEMA 30 is meticulously crafted in Japan with authentic materials in a modern style, befitting its rich heritage and stunning performance.
HiFi performance technologies like HDAM SA-2, and more elevate the CINEMA 30 to performance levels seldom found in an AVR.
Powerful calibration and tuning tools are included, enabling you to get the best performance from your system.
Seven HDMI inputs, plus digital, analog, and phono inputs – even analog video plus loudspeaker and pre-amp outputs – ensure connectivity to virtually any components you have.
SPECIFIKACIJOS
Power Amplifier
- Number of Powered Channels11
- Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)-
- Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive)140 W
- Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)175 W
- Power Output (6 ohm, 1 kHz, 10% 1ch Drive)250 W
- 70% GuaranteeYes
- Discrete Power AmplifierYes
- Amplifier TopologyClass A/B
- Current Feedback Topologyyes
- Bi-Amp Driveassignable
Multichannel Surround Technologies
- DTSDTS HD Master, DTS:X, DTS:X Pro, DTS Neural:X, DTS Virtual:X
- DolbyDolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
- Other
- Max Number of Processing (Preamp) Channels13.4
- IMAX EnhancedYes
- Auro 3DYes
- Audyssey DSXYes
- Multichannel StereoYes
Inputs Outputs
- Composite In / Out2 / 0
- Component In / Out1 / 0
- HDMI In / Out7 / 3
- Multi-Room Video Out via HDMI0 / 0
- Analog In / Fixed Level Out3 in / 0 out
- Phono (MM) InYes
- Digital In: Optical / Coaxial2 / 2
- Multi-Room Out: analog / digital2 / 0
- Multichannel Preamp Out7.2
- Subwoofer Out4 (independent)
- 7.1 multichannel inputNo
- Number of Speaker Terminals13
- Speaker A / Bassignable
- Multi-Room Speaker Terminalassignable
- Front InputsUSB-A
- USB AudioYes / No / No
- FM Tuner with RDSYes
- DAB+ TunerNo
- Multi-Room Video Out: Video / HDMI7/3
- analog In/out6 / 0
- Multichannel Pre OutYes (13.4)
- Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USBNo / No / No / No / Yes
HDMI
- Total HDMI Inputs / No. Support 8K6 / 3
- HDCP2.3 supportYes
- HDMI Outputs: Main / Zone2 / 1
- Analog to HDMI Video ConversionNo
- HDMI Upscaling1080P/4K to 8K
- Max resolution @ framerate
- Audio Return ChannelARC, eARC
- Video Dynamic RangeHDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
- ALLM (Auto Low Latency Mode) Pass-through for gamingYes
- Variable Refresh Rate / Quick Frame TransportYes / Yes / No
- HDMI Pass-Through in Standby ModeYes
- CECYes
- DSD Audio over HDMINo
- Auto LipSyncYes
- HDMI Inputs: Back / Front7 / -
- Video Conversion Analog -> HDMIYes
- HDMI to HDMI Scaling1080P/4K to 8K
- HDMI 2.1: 8K/60Hz AB / 4K/120Hz ABYes / Yes
- 8K/60Hz AB / 4K/120Hz AB Pass-through In/Out7 / 2 (up to 40Gbps)
- HDMI 2.0: 3D / 4K / CEC / ARCYes / Yes / Yes / Yes
- HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDRYes / Yes / Yes / Yes / Yes
- Variable Refresh Rate / Quick Flame Transport / Quick Media SwitchingYes / Yes / No
- 8K signal pass-through / scaling / GUI overlayo / o / o
- 4K Signal Pass-Through / Scaling / GUI Overlayo / o / o
- DSD Audio CapabilityYes
Performance Technologies
- Copper Plated ChassisYes
- Toroidal Power Supply TransformerYes
- Hyper Dynamic Amplifier Modules (HDAM) (List version)Yes
- Pure Direct ModeYes
- Gold Plated RCA TerminalsYes
- Clock Jitter ReducerYes
Acoustic Room Correction
- AudysseyMultEQ XT32
- Audyssey Dynamic EQ / Dynamic VolumeYes / Yes
- Audyssey LFCYes
- Dirac Live SupportYes
- Variable Cross OverYes
- Optimized Bass RedirectionYes
- Bass SyncYes
- Dirac Live UpgradabilityYes
Music File Support
- Lossy FormatsMP3 / WMA / AAC
- Lossless formatsFLAC HD 192/24 / WAV 192/24 / ALAC 192/31
- DSD Audio2.8 MHz / 5.6 MHz
- Gapless PlaybackFLAC, WAV ,ALAC ,DSD
- Compressed Audio Enhancer: MDAX2Yes
- Network Audio SharingYes
Streaming Services
- HEOS Multi-room and StreamingYes
- AirPlay Audio StreamingAirPlay2
- Internet RadioTuneIn
- Spotify*Spotify Connect
- PandoraNo
- SiriusXMYes
- Other Streaming Services *Amazon Music HD/
Amazon Music / TIDAL / Deezer / Napster / Soundcloud / Mood Mix
- Roon testedYes
Network Connectivity
- Ethernet PortsYes
- Wi-Fi (include version / band)Yes
- Bluetooth (Include version)Yes
- Bluetooth Re-transmit for Bluetooth headphonesYes
Smart Home Integration and Control
- Voice Assistant CompatibilityAlexa / Google Voice Assistant / Apple HomePod
- App for Smart Phones & Tablets (iOS & Android)Marantz AVR App
- HEOS Multi-Room IntegratedYes
- HEOS Link Compatibility: IR/ IPYes /Yes
- Multi-Room zones2
- Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog2 Ch / 2 Ch / Yes / Yes
- Zone Audio Output: Speaker / PreoutYes / Yes
- Zone HDMI Output from HDMI SourceYes
- Control ConnectivityIP Control / RS232 Control / Web Control / App Control
- IR Flasher InYes
- Marantz Remote BusYes
- DC Trigger Output3
- HDMI DiagnosticsYes
Others
- Front Display2 line FLD + port hole OLED
- Primary Display Size (diagonal in/mm)
- Secondary Display Size (diagonal in/mm)
- GUI Languages3
- Setup AssistantYes
- Smart Select on RemoteYes
- Firmware Update by Network / USBYes / Yes
- ECO ModeYes
- Auto Power offYes
- Sleep TimerYes
- GUI Overlay on HDMI
- CECYes
- Auto Speaker Setup by MicrophoneAudyssey MultEQ XT32Dirac Live (upgrade)
- Graphic User Interface - GUIModern HD GUIModern HD GUI
- Smart SelectYes
General
- Available ColorsBlack/Silver-Gold
- Metal Front PanelYes
- System Remote ControlRC-051SR
- Power Consumption in W780
- Power Consumption No-Sound (ECO on/off) in W65 W / 110 W
- Standby Consumption in W0.2
- CEC Standby Consumption in W0.5
- Network Standby Consumption in WLess than 2.0
- Maximum Dimensions
Antenna:Horizontal:(W x D x H) in mm
Antenna:Vertical :(W x D x H) in mm
W/o Antenna:(W x D x H) in mm442 x 384 x 109
( 442 x 384 x 178 )
【 442 x 372 x 109 】
- Weight in kg8.7
- What's in the boxMain unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, cardboard microphone stand, 2 External Detachable Antennas, AC cord
- Weight in lbs.42.8
- Maximum Dimensions
Antenna:Horizontal:(W x D x H) in mm
Antenna:Vertical :(W x D x H) in mm
W/o Antenna:(W x D x H) in mm17.4 x 18.0 x 7.5
(17.4 x 18.0 x 10.2)
【17.4 x 17.6 x 7.5】
- Pre-Programmed / Learnable / LCD Display
