Produkto aprašymas
Lexicon DD-8+ 8-Kanalų Tinklinis Stiprintuvas glia 8 x 125W, dažnių juosta 20Hz - 20kHz +0dB/–1.5dB | Nemokamas Pristatymas
Galingas 8-kanalų tinklinis stiprintuvas!

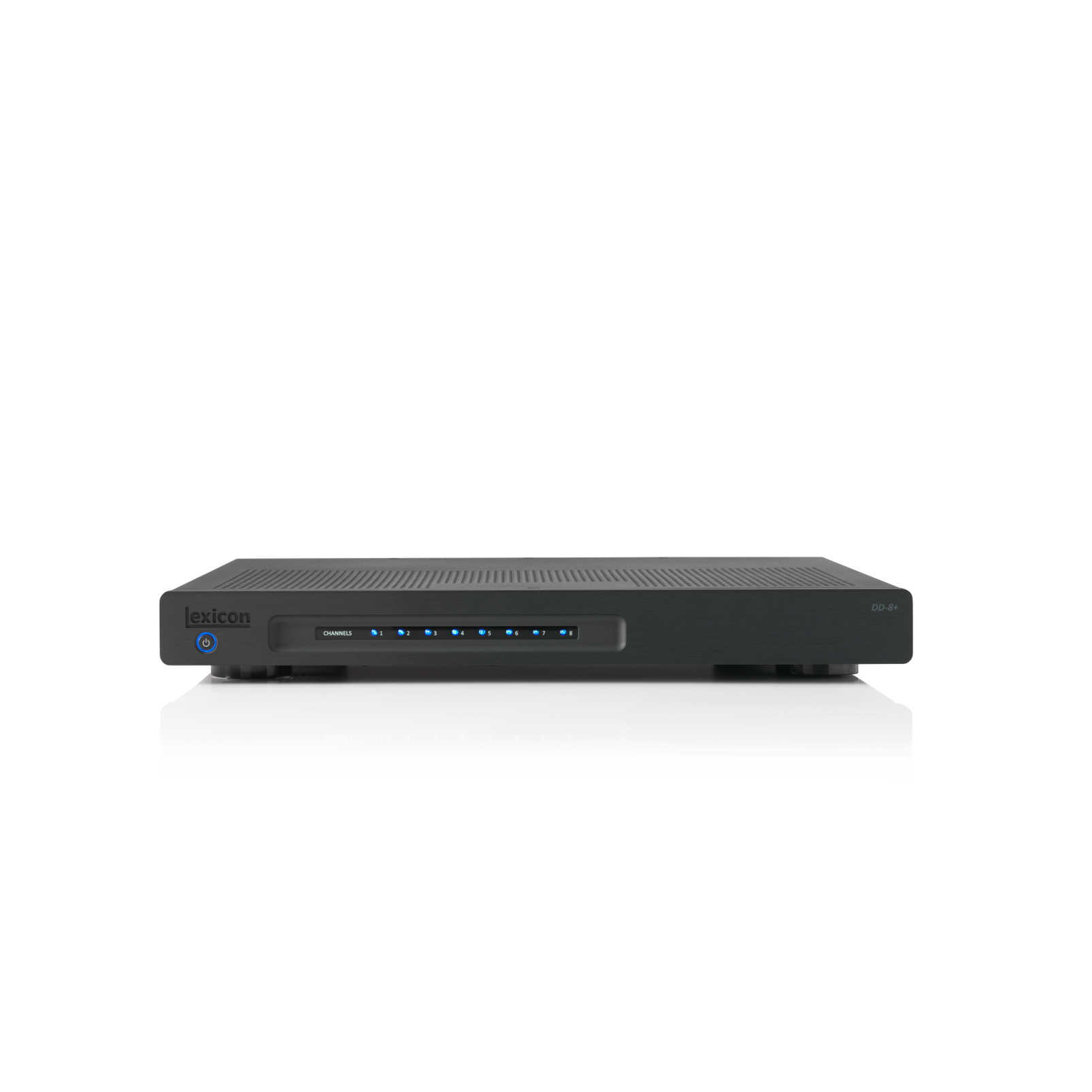

The Lexicon® DD-8+ is an advanced multi-channel amplifier with network controlled matrix routing and multi-channel digital signal processing (DSP) that provides a pallete sound shaping controls and system configuration tools. The DD-8+ features award winning DriveCore™ amplifier technology, eight powered channels of 125 Watts each, and a chassis of only one rack space height. Featuring ten analog and four stereo digital audio inputs, an ESS Sabre 32 high-resolution DAC, plus the ability to configure and control the amplifier from major web browsers.
DD-8+ Savybės
-
Multi-patented DriveCore™ amplifier technology
-
8 X 125W into 8-ohms, all channels driven
-
Matrix routing – assigns any and all input sources to any or all outputs
-

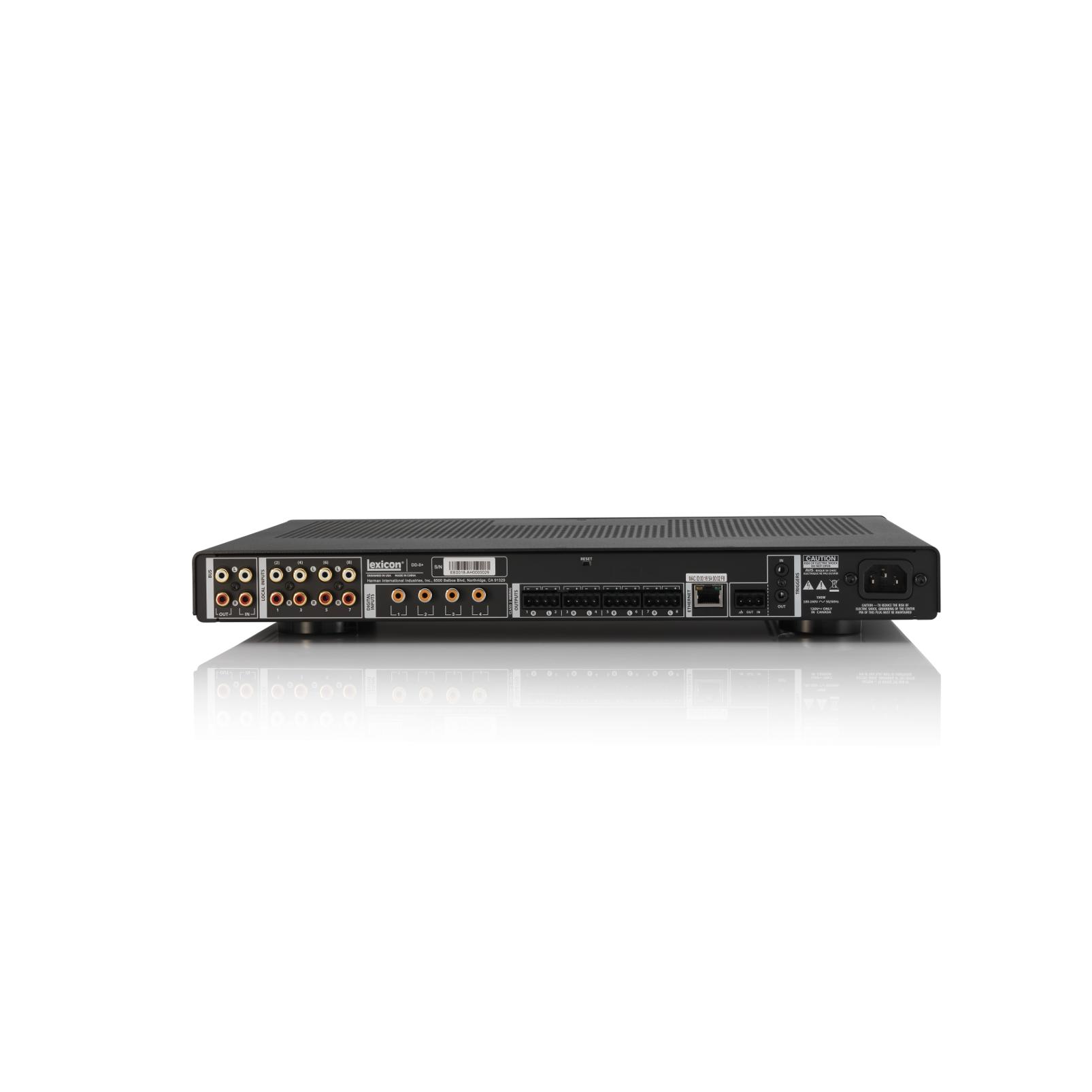

10 analog (5 stereo) and 4 stereo digital inputs
-
24-bit/192kHz High-Resolution audiophile DAC
-
Built-in digital signal processor (DSP) accessible via Ethernet-connected computer
-
Independent channel output level, bass, treble, variable HP and LP filters
-
Output limiter and time delay control
-
Signal Sensing channel inputs & 5- 15V Trigger Control
-
High-efficiency, quiet convection-cooled design
-
Compatible with IP control/automation systems by Crestron, AMX, Control 4 and more
-
Ten-band parametric equalizer with pink noise generator
-
HARMAN GreenEdge™ energy compliance
-
Front panel standby power switch with indicator LED
-
Front panel channel status indicator LED’s
-
Short-circuit and thermal protection circuitry
-
Feedback and protection circuits
-
Lightweight 1U chassis (rack ears included)
-
Optional shelf mounting (feet included)
Specifikacijos
| Communication and Control | IP control through web browser and 3rd party IP control systems |
|---|---|
| Output Power | 125W RMS per channel into 8 ohms from 20Hz – 20kHz |
| Frequency Response | 20Hz - 20kHz +0dB/–1.5dB |
| Total Harmonic Distortion (THD) | Less than 0.05% at full rated power 20Hz - 20kHz |
| Signal-to-Noise Ratio | < –105dB below rated full power A-weighted |
| Crosstalk | < –70dB @ 1kHz |
| Input Sensitivity | 1.12 volts for 125W out into 8 ohms |
| Gain | 29dB |
| Input Impedance | 100K ohms typical |
| Trigger Input | 5V minimum – 15V maximum DC |
| Dimensions (H X W X D) | 2.1" (w/ feet) / 1.7" (w/out feet) x 17.3" x 14.9", 5.4 cm (w/ feet) / 4.5cm (w/out feet) x 43.8 cm x 37.8 cm |
| Weight | 9.2 lbs (4.2 kg) |
| Power Requirements | 100 - 240VAC, 50/60Hz |
