KEF Ci130ER garsiakalbis jautrumas 87dB (2.83V/ 1m) dažnių juosta 52Hz - 20kHz (+/-6dB) rekomenduojama stiprintuvo galia 10-80W | Nemokamas Pristatymas

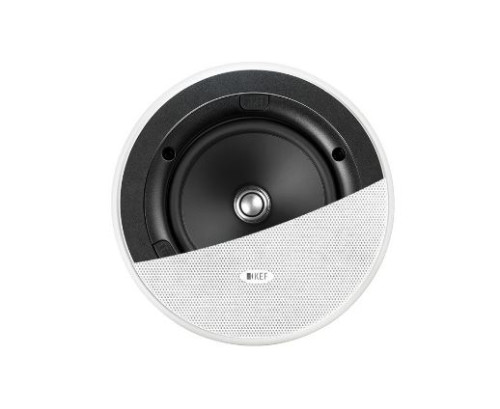

Ci130ER
Heard but not seen, with unprecedented value and performance, KEF's E series of architectural speakers is designed and manufactured to the same exacting standards as all KEF's architectural offerings and features KEF's famed Uni-Q driver technology.
KEF's Uni-Q driver enables the mid-range and tweeter to act as a single point source. This patented technology allows the listener to sit anywhere in the room and still enjoy KEF's world-renowned sound and clarity without having to be positioned in the narrow "sweet-spot" found with conventional speaker designs.
The E Series also features KEF's Ultra-Thin Bezel (UTB) technology which offers the thinnest possible visible rim around the speaker assembly. The bezel and grill can be painted to match the interior décor.
All KEF Ci architectural speakers, including the speakers in the E Series, are manufactured to Weather Resistant Construction standards: The grilles are coated via a proprietary process, the speakers include moisture-resistant terminations and finish materials, and the plastics are UV protected, allowing you to safely use these speakers in applications other speakers in its price-range simply cannot be considered for - such as your bathroom, poolside, or on your yacht!
Key Features
- UTB™ Ultra Thin Bezel
- 130mm (5.25in.) Uni-Q driver array
- 16mm (0.6in.) Aluminium dome tweeter
- Weather Resistant Construction
- Magnetic Grille
Specifikacijos
NOMINAL IMPEDANCE | 8 Ohm |
---|---|
SENSITIVITY | 87dB (2.83V/ 1m) |
FREQUENCY RESPONSE | 52Hz - 20kHz (+/-6dB) open-backed |
CROSSOVER FREQUENCIES | 2.8kHz |
DRIVE UNITS | LF: 130mm (5.25in.) HF: 16mm (0.6in.) |
RECOMMENDED AMPLIFIER POWER | 10-80W |
PRODUCT EXTERNAL DIMENSIONS | Diameter : 193.4mm (7.61in.) Depth : 81mm (3.19n.) |
CUT-OUT DIMENSIONS | Diameter : 158mm (6.22in.) |
MOUNTING DEPTH FROM SURFACE | 77.5mm (3.05in.) |
OPTIONAL ROUGH IN FRAME | RIF130R |
OPTIONAL REAR ENCLOSURE | RNC130R |
NET WEIGHT | 1.2kg (2.7lbs) |
UNIT MEASUREMENT | Piece |
DOCUMENT DOWNLOAD | Ci130ER/ Ci160ER/ Ci200ER Information Sheet Ci Series Pamphlet Ci Series Specification Sheet Minimum Cabinet Volume EASE GLL Data Product Drawing |
