Produkto aprašymas

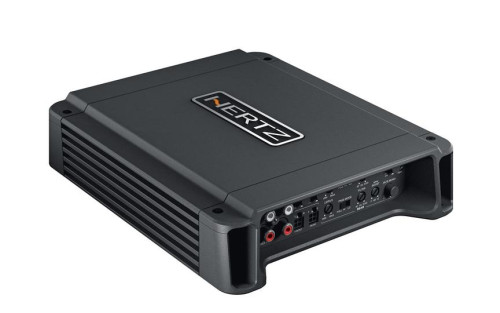

Hertz HCP 4D automobilinis garso sitprintuvas galia: 85 W x 4 (4 Ω), Lo-Pass bei Hi-Pass filtrai, THD: 0.02%. | Nemokamas Pristatymas
Automobilinis, 4-turių kanalų garso stiprintuvas užtirkins gamintojo deklaruojamą garso kokybe!
HCP 4D is a D Class car audio amplifier, able to offer up to 1160W (RMS); it is the ideal choice for those who want high power levels in complex systems. Extremely versatile, complete in its functions, provided with Speaker-In and RCA-In inputs to work with any head units, it has been designed to work also in mono (selectable mode), for a three-channel system with sub and front, or a powerful two-channels system.
All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system. The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier.
SPECIFIKACIJOS
| Channel mode | 4 - 3 - 2 |
| Output Power (RMS) @ 14.4 VDC |
4 Ch: 85 W x 4 (4 Ω) 4 Ch: 145 W x 4 (2 Ω) 3 Ch: 85 W x 2 (4 Ω) + 290 W x 1 (4 Ω) 3 Ch: 145 W x 2 (2 Ω) + 290 W x 1 (4 Ω) 2 Ch: 290 W x 2 (4 Ω) |
| Filters Bypass Hi-Pass Lo-Pass Band-Pass |
Yes A/B: 50 ÷ 3.2k Hz @ 12 dB/Oct. A/B: 50 ÷ 3.2k Hz @ 12 dB/Oct. - |
| Distortion - THD (100Hz @ 4Ω) |
0.02% |
| S/N Ratio (A weighted @ 1V) |
100 dB |
| Damping factor (100Hz @ 4Ω) |
200 |
| Size W x D x H mm (in.) |
215 x 190 x 50 (8.46 x 7.48 x 1.97) |
