Produkto aprašymas

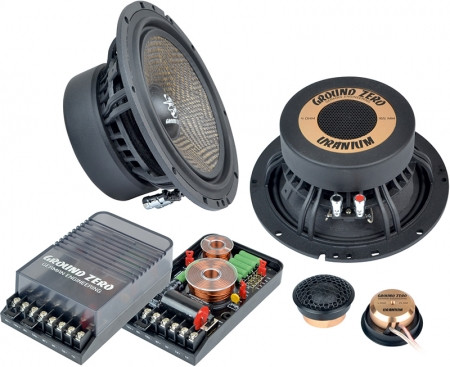

Ground Zero GZUC 650SQX
Features
- High quality component system with WFWC® cone
- Resonance free airflow optimized aluminum cast basket
- Klippel® optimized midwoofer with push terminal
- LDW®-Surround for low distortions
- 25 mm / 1" silkdome tweeter in machined aluminium housing with coupled chamber and high power neodymium magnet
- Variable 12 dB crossover with high quality Air-coils, MOX-Resistors and MET-Capacitors
| Technical data |
Model
GZUC 650SQX
Type
2 Wege Komposystem / 2 Way compo
Diameter of midwoofer or midrange
165 mm / 6.5"
Mounting diameter of midwoofer or midrange
142 mm / 5.59”
Mounting depth of midwoofer or midrange
70 mm / 2.76
Voice coil of midwoofer or midrange
31 mm / 1.22" copper round wire
Cone of midwoofer or midrange
WFWC®
Dustcap / Phaseplug of midwoofer or midrange
Gewebe / Cloth
Basket of midwoofer or midrange
Aluminium Guß / Cast
Magnet of midwoofer or midrange
Ferrit
Diameter of tweeter
49 mm / 1.93"
Mounting diameter of tweeter
43,10 mm / 1.7"
Mounting depth of tweeter
22 mm / 0.87"
Voice coil of tweeter
25 mm / 1"
Cone of tweeter
Seide / Silk
Housing of tweeter
Aluminium
Magnet of tweeter
Neodym
Power handling WRMS
140 W
Power handling W peak
220 W
Impedance
4 Ohm
SPL
90 dB
Frequency response
40 - 25000 Hz
