Produkto aprašymas
SVS PB-1000 Pro žemų dažnių garso kolonėlė daugiau nei 820W galia piko metu, įmontuotas D- klasės stiprintuvas (SVS Sledge-325D ), EQ valdymo savybės | Nemokamas Pristatymas
PB-1000 Pro profesionali žemų dažnių garso kolonėlė, kuri pasižymi galingais bei tiksliais žemais dažniais. Kolonėlė taip pat turi patogų valdymą per aplikaciją.
12-INCH SVS HIGH-EXCURSION DRIVER – ROOM-SHAKING BASS WITH SUBTLETY AND REFINEMENT.
Substantially upgraded from the previous 10-inch 1000 Series driver design, the PB-1000 Pro features a reimagined 12-inch high-excursion driver with dual ferrite motor assembly. Capable of moving massive amounts of air with crisp precision, the added surface area provides a major performance upgrade over the previous model and features multiple enhancements.
- Fiber composite cone with exceptional stiffness-to-mass-ratio generates huge SPLs while starting and stopping on a dime with crisp precision.
- Proprietary injection molded extreme-excursion surround ensures flawless pistonic motion for pinpoint control and accuracy without distortion, even at the highest drive levels.
- Dual ferrite magnet motor assembly with extended aluminum polepiece produces effortless on-demand driving-force for subtle and over-the-top bass thrills.
- Powder coated FEA optimized driver basket provides maximum rigidity, tensile strength, and thermal energy transference.
- Dual layer voice coil design enhances linearity and fidelity at full excursion while minimizing distortion and power compression.
SLEDGE STA-325D AMPLIFIER – EFFORTLESS POWER WITH SOPHISTICATED CONTROL.
Conservatively rated at 325 watts RMS, 820+ watts peak power, the Sledge STA-325D amplifier maximizes the full potential of the 12-inch driver with effortless power and precise control. The innovative design combines the efficiency of a Class D amplifier with the ability to move colossal amounts of current through the fully discrete MOSFETs for outstanding real-world subwoofer performance at all drive levels, in any room, allows easy integration with any home theater or stereo speaker system.
- High Current Output from Fully Discrete MOSFETs coupled with efficiency of Class D amplification allows the Sledge STA-325D amplifier to produce massive amounts of current enabling immense output with surgical precision.
- Sophisticated 50Mhz High Resolution Analog Devices Audio DSP is the most advanced digital processor ever used in a subwoofer and maintains pristine sound quality through advanced in-room tuning, powerful DSP controls, custom presets, and more.
- Optimized frequency response curves for the ported PB-1000 Pro cabinet allow the subwoofer to take control of a room and completely pressurize it with accurate, heart-pounding bass.

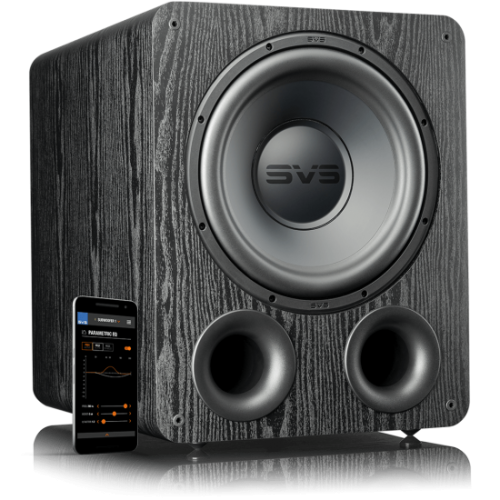

PB-1000 PRO SMARTPHONE APP – EASIEST WAY EVER TO MANAGE SUBWOOFER DSP AND CONTROL.
The most convenient way ever to control volume, access multiple DSP functions, and program custom presets for one-touch tuning optimized for music, movies, gaming, and more. Adjust crossover frequencies, dial-in the three-band parametric EQ, polarity, room gain and more, all from your favorite seat.
- Connects via Bluetooth for convenient control even when subwoofer is out of sight.
- Saved custom presets for one-touch tuning with optimized settings based on listening preferences for movies, music, and more. All accessible from a single touch.
- Variable port tuning modes with customized frequency response curves for “Standard” and “Sealed” allow tuning for maximum output or deep bass extension and transient speed.
- 3-band parametric EQ controller allows precise adjustments for boost or cut, Q-factor, and frequency down to the single Hz level with so users can customize performance by eliminating peaks, nulls and other room issues
REAR PANEL INTELLIGENT CONTROL INTERFACE (ICI).
The rear-panel SVS Intelligent Control Interface (ICI) provides control options and connections for the subwoofer’s most critical functions.
- Level Control to fine tune the overall output level that best matches the system and room
- Low pass filter control to ensure smooth sonic transitions and seamless blending with the main speakers
- Phase control to align the subwoofer’s output timing with the main speakers or additional subwoofers
- USB port also provides power for the optional SVS SoundPath Wireless Audio Adapter which eliminates the need for a cable run to the subwoofer from the source component.
- RCA Audio Interconnect Input for use with most AV receivers and preamplifiers
- Speaker Level Stereo Inputs for use with older legacy receivers
ACOUSTICALLY INERT AND RIGIDLY BRACED PORTED CABINET DESIGN.
Classically handsome, the acoustically optimized ported cabinet features extra-thick MDF front baffle and rigid internal bracing for a resonance-free environment. Serves as a blank canvas for uncompromised subwoofer performance.
- Dual port design allows for maximum airflow without distortion, enhancing the quantity and quality of bass output at all drive levels
- Acoustic insulation eliminates all coloration from the cabinet, even when the deepest low frequencies are played at reference volume
- Protective non-resonant extra-thick ABS grille frame with fabric mesh cover shield driver to prevent damage while ensuring longevity
- Reinforced internal bracing for resonance free performance at highest drive levels
- Custom iso-elastomer screw-in feet reduce noise artifacts and improve stability
Specifiakacijos
- 17-260 Hz +/- 3 dB (standard mode)
- 19-260 Hz +/- 3 dB (sealed mode)
- Expect 2-3 Hz deeper extension in small to mid-size rooms.
- 2-meter ground plane away from reflective structures (quasi-anechoic).
- Roll-off slope specifically optimized to take maximum advantage of available room gain.
Subwoofer Specs:
- Protective non-resonant extra-thick ABS fabric mesh grille
- Iso-elastomer feet included
- Extra heavy-duty, high current power cord 6'
- Quick Start Guide
- Port Plugs (free upon request)
- Unbalanced stereo input/output
- Speaker Level Stereo Input
- Auto/On and Trigger options through app, 3-12V AC/DC trigger
- RoHS compliant, lead-free construction, world-wide safety certifications
- Green 0.5-watt low standby power consumption
- Dimensions (w/ grille): 18.9” (479mm) H X 15” (380mm) W X 20” (509mm) D
- Dimensions (without grille): 18.9” (479mm) H X 15” (380mm) W X 19.2” (488mm) D
- Shipped Dimensions: 23.4” (594mm) H 19.9” (506mm) W X 24.4” (619mm) D
- Weight (unboxed): 42.5lbs (19.3kg) with Grille
- Shipped Weight: 51.6lbs (23.4kg)
Driver Specs:
- All-new proprietary 12-inch long-throw driver with high-precision tuned overhung motor configuration.
- 9.26lb (4.2kg) pound Woofer with 6.91lb (3.14kg) pounds motor
- 13.1mm Xmax, 26.8mm Xmech precision aligned excursion
- 1.5” diameter Voice Coil with high current 6-layer high-purity copper wire windings
- Premium high-purity copper voice coil winding design minimizes distortion and power compression with maximum heat dissipation, linearity, and tuned magnetics for high excursion
- Two-piece high grade oversized Y35 Ferrite magnet motor
- High Temperature 3003-H18 aluminum former/bobbing
- 6” composite cotton-poly extreme excursion linear spider
- Dual 24-strand copper-alloy high-temperature leads
- Proprietary injection molded gasket and NBR extreme-excursion surround
- Lightweight treated Fiber Composite cone for enhanced sensitivity and transient response
- Top plate assembly with low carbon 1010 steel for optimal magnetics
- Oversized low carbon 1008 steel T-yoke with integrated pole piece extension for maximum cooling and electromagnetics
- 12” premium powder coated basket with FEA optimized analysis for maximum rigidity, tensile strength, and energy transference
- Oversized motor system for driving full excursion and industry best SPL, with pinpoint transient speed
- Precision machining for motor and narrow tolerance suspension parts ensure flawless linearity at full range of excursion
SVS Sledge-325D Amplifier Specs:
- 325 watts RMS, 820+ watts peak power output Class D design
- 50Mhz Analog Devices Audio DSP, high resolution double precision 56bit filtering
- Wide input voltage bandwidth compliant for consumer and pro audio up to 4V line level input.
- High efficiency LLC resonant SMPS with 17A 650V MOSFET, resonant switching results in lower EMI and highest efficiency.
- Cool-running Class D amplifier switching topology with massive 34A 120V MOSFET’s
- SVS BLE control app for iOS and Android contains 3 complete name-able and customizable User presets, supports IOS (iphone5 or newer or Android (4.42 or newer), 3 PEQ's per preset, adjustable low pass, phase, polarity, room gain compensation, and control for best alignment with speakers.
- Customer EQ and DSP limiter settings specifically for the 1000 Pro
- Input impedance 16kohm (unbalance RCA)
- Input impedance 20kohm (speaker level)
- New Intelligent Feature control (IFC) user interface on the amplifier with bright blue 11 LED bar display and easy push-button controls.
SVS App Specs:
- Bluetooth controlled subwoofer DSP smartphone app works with iOS, Android and Amazon operating systems.
- Easiest and most convenient way to adjust crossover frequencies, parametric EQ, polarity, room gain and all other bass management functions.
- Three convenient custom presets allow for perfect tuning in any room or system, from your favorite seat.
- Unique bidirectional feedback shows adjustments in real time on both app and subwoofer interface.
- Easy-to-follow tutorial provides clear guidance for all functions.
