Produkto aprašymas

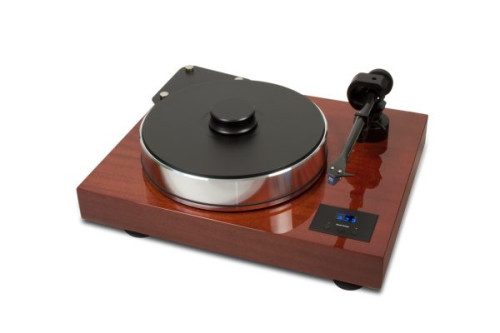

Pro-Ject XTENSION 10 EVOLUTION Patefonas galimi greičiai 33/45/78 Aps/Min su elektroniniu greičių keitimu, diržinė pavara | Nemokamas Pristatymas
Aukštos Klasės Patefonas
The little brother of Xtension guarantees superlative vinyl performance in a more compact size!
Xtension 10 Evolution is ideal for all, who look for sound quality of standard Xtension in a more compact size below 48cm width, to fit standard audio racks. It incorporates all of our 20 years experience in turntable design. Xtension 10 chassis is made from MDF filled with metal sand, that gives high mass and is non-resonant. Magnetic feet, which decouple the main plinth from its base, are combined with a weighty 22 kg total turntable mass. The result is a unique combination of ‘mass loaded’ and ‘floating turntable’ design principles.
Instead of the old standard adoption of pure metal used for the main platter, we’ve found a perfect alloy which we damped on the inner side with Sorbothane®. Additionally we’ve glued recycled Vinyl records to the top (which act as a perfect mat) and bake this ‘sandwich’ before precision balancing it. The final product subsequently benefits from a wonderfully resonance-free, heavy platter, that runs ultrasilently on an inverted ceramic ball bearing with magnetic suspension.
The Pro-Ject 10cc Evolution with its tonearm base also benefits from ‘high-mass’ technologies, and is isolated from the main board by a sheet of Sorbothane®. To use this tonearm with a wide range of top quality phono cartridges, from 4 to 14 Grams. it comes with a set of 4 different Sorbothane®- damped counterweights. Xtension 10 Evolution comes with a beautiful dustcover with adjustable hinges, as well as in high gloss lacquer finishes: mahogany, olive, walnut, rosewood, piano black, red and white.
XLR Option
Pro-Ject Audio Systems offers their highend turntables with premium 5pin>RCA unbalanced arm cable or – by request – with premium balanced 5pin>XLR connection to Pro-Ject Phono Box RS preamplifier. Phono Box RS offers balanced phono inputs, what guarantees superior results in highend vinyl reproduction with a balanced signal source.
NOTE: The signal source and the receiving device have to be equipped with balanced connections. Transmission of audio signals in a balanced mode reduce the influence of interference due to external stray electric fields significantly.
The editions walnut and palisander are available on request.
Magnetically supported feet
With two magnets located in the feet, the turntable is practically floating. The studs in the feet are only used for keeping them centered. Due to this unique feature the turntable is perfectly decoupled from the surface it is placed on.
Savybės
- Super-heavy 22 kg belt drive turntable
- Mass loaded magnetic floating subchassis
- Precision balanced sandwich-platter
- Inverted ceramic ball bearing with magnetic support
- Heavy weight record clamp
- Extremely low level of natural resonance
- Perfect decoupling through magnetic feet
- Electronic speed control 33/45/78 Upm
- Tonearm 10cc Evolution made from carbon fibre
- Inverted tonearm bearings (ABEC 7 quality)
- Dust cover included
Galima užsisakyti su papildomu Orfofon Cadenza-BLACK Kartridžu
Orfofon Cadenza-BLACK Kartridžo specifikacijos:
Output Voltage (at 1kHz, 5cm/sec): | 330μV |
Channel Balance at 1kHz: | < 0.8dB |
Channel Separation at 1kHz: | > 27dB |
Channel Separation at 15kHz: | > 20dB |
Frequency Range (at -3dB): | 20Hz – 60kHz |
Frequency Response 20Hz – 20kHz: | +1.5 / 0 |
Tracking Ability at 315Hz: | Typically 90μm |
Compliance, Dynamic, Lateral: | 16μm / mN |
Stylus Type: | Nude Shibata |
Cantilever: | Boron |
Stylus Tip Radius r / R: | 6 / 50μm |
Tracking Force Range: | 2.0 – 2.5g (20 – 25mN) |
Recommended Tracking Force: | 2.3g (23mN) |
Tracking Angle: | 20º |
Internal Impedance / DC Resistance: | 5Ω |
Recommended Load Impedance: | > 10Ω |
Cartridge Body Material: | Stainless Steel Aluminium |
Cartridge Colour: | Black / Black |
Cartridge Weight: | 10.7g |
