Produkto aprašymas

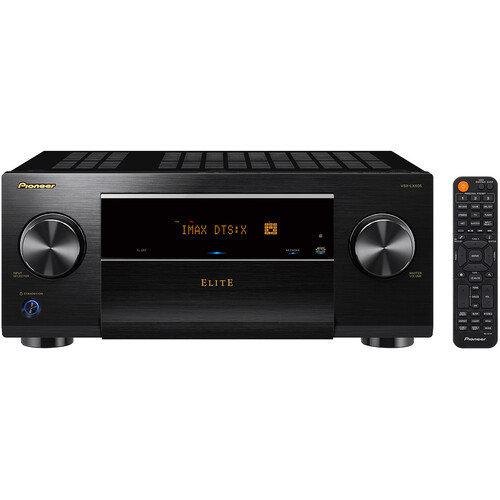

Pioneer Elite VSX-LX505, 9.2 kanalų AV Resyveris-Stiprintuvas galia: 9 x 120W, 8K esant 60 Hz arba 4K esant 120 Hz. Dolby Atmos Height Virtualizer, Dolby TrueHD ir Dolby Digital Plus palaikymas | Nemokamas Prisatymas
"Pioneer" "Elite VSX-LX505" 9,2 kanalo tinklo A/V imtuve "Elite VSX-LX505" įdiegta daugybė funkcijų ir technologinių galimybių, kad jūsų erdvė būtų pripildyta tikslaus garso ir įspūdingo vaizdo. Galite kalibruoti garsą pagal konkrečią erdvę naudodami "DIRAC Live" arba MCACC. 4K HDR filmai gali atrodyti ir skambėti autentiškiau, nes palaikomas IMAX Enhanced.
Ensuring your space is filled with accurate sound and eye-popping visuals, the Elite VSX-LX505 9.2-Channel Network A/V Receiver from Pioneer utilizes a host of features and technological capabilities. You can calibrate audio to your specific space with either DIRAC Live or MCACC. Films in 4K HDR can look and sound more authentic with IMAX Enhanced support. For all of your visual content, the LX505 provides up to 8K resolution at 60 Hz, or 4K at 120 Hz, which is ideal for smooth playback of movies and games. Other gaming enhancements are included thanks to HDMI 2.1 support, as well as access to music streaming and multi-room playback.
- 120W per channel of output power
- Dolby Atmos with Dolby Surround Upmixer supporting DTS formats
- Reflex optimizer
- Dolby Atmos Height Virtualizer
- Dolby TrueHD and Dolby Digital Plus support
- DSD Disc (SACD) playback via HDMI
- 2-channel advanced sound retriever
- 192 kHz/24-bit DAC for Hi-Res Audio
- eARC support on main HDMI output
- Digital quad-core 32-bit DSP with Aureus floating-point DSP
- Dolby Vision compatible
- HDR10+ and HLG support
- Upscaling of content from 4K to 8K or 1080p to 4K/8K
- Chromecast built-in
- Supports Amazon Alexa and Google Assistant for multi-room support
- Apple AirPlay 2 with Siri voice control
- Hi-Res Audio playback via USB or over your home network
- Personal preset
- Dialog enhancement
- User-friendly GUI with system setup menu
- On-screen information for audio, video, and network
- Web setup
- Auto power off in HDMI standby through
- AM/FM tuner with 40 presets
- Sleep timer
SPECIFIKAICJOS
Channels | 9.2 With External Amplifier: 11.2 |
Power Output per Channel | 1-Channel Driven: 230 W at 6 Ohms / 1 kHz / 10% THD 2-Channel Driven: 120 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD |
DTS Compatibility | DTS 96/24, DTS Express, DTS Neural:X, DTS-ES, DTS-HD High Resolution, DTS-HD Master Audio, DTS:X |
Dolby Compatibility | Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Digital Plus, Dolby TrueHD |
Auro 3D Support | No |
Upmixing Technology | Dolby Surround, Dolby Atmos Height Virtualization Technology |
DAC | 192 kHz / 24-Bit |
HDR Compatibility | HDR10+, Hybrid Log Gamma |
Upscaling | 1080p to 8K UHD |
GUI | Yes |
Rear A/V Inputs | 6 x HDMI 2.1 1 x USB Type-A 1 x Digital Coaxial 1 x Optical TOSLINK 1 x 3RCA Component 2 x RCA Composite 4 x Stereo RCA 1 x Stereo RCA (Phono) with Ground Screw |
Rear A/V Outputs | 1 x HDMI 1 x HDMI Zone 2 1 x Stereo RCA Zone 2 / Zone B Line-Out 1 x Stereo RCA Zone 3 Pre-/Line-Out 1 x 9-Channel RCA Pre-Out 2 x RCA Subwoofer Pre-Out |
Front I/O | 1 x HDMI Aux Input 1 x USB Type-A Input 1 x 1/8" / 3.5 mm Setup Mic Input 1 x 1/4" / 6.35 mm Headphone Output |
Other Rear I/O | 1 x RJ45 (Ethernet) Input/Output 1 x DE-9 (RS-232C) Input 1 x 1/8" / 3.5 mm (IR) Input 1 x 1/8" / 3.5 mm (IR) Output 1 x 1/8" / 3.5 mm (12 V Trigger) Input 1 x 1/8" / 3.5 mm (12 V Trigger) Output 1 x FM Coaxial F-Type Input 1 x AM Block Input |
Speaker I/O | 11 x Binding Post Pair (Front, Center, Height, Height 2, Rear, Rear Surround) |
HDCP Support | Version 2.3 |
HDMI Compression Modes | Not Specified by Manufacturer |
Audio Return Channel (ARC) | ARC, eARC |
HDMI CEC | Yes |
Media Card Slot | None |
Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) |
Supported Audio Codecs | AAC, SBC, aptX, aptX HD |
Wireless Audio Protocols | AirPlay 2, Chromecast built-in, DTS Play-Fi |
External Control Support | Android/iOS Control App |
Virtual Assistant | Works with Alexa, Works with Google Assistant |
Tuner Type | AM, FM |
Number of Tuner Presets | 40 Stations |
AC Input Power | 120 VAC, 60 Hz |
Power Consumption | Active: 850 W Standby: 0.1 W |
Dimensions (W x H x D) | 17.1 x 7.3 x 15.2" / 435.0 x 185.0 x 386.0 mm |
Weight | 28.7 lb / 13 kg |
Package Weight | 32.835 lb |
Box Dimensions (LxWxH) | 20.7 x 19.2 x 13.2" |
