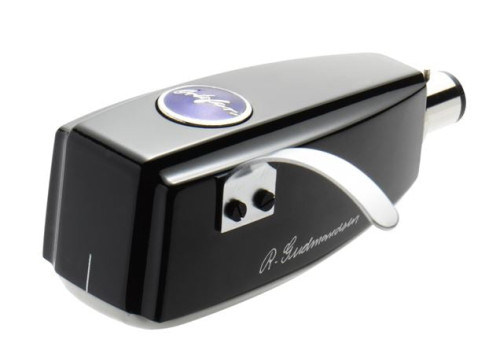

Ortofon SPU Meister Silver G MkII, patefono galvutė | Nemokamas Pristatymas

Kartridže įmontuota didelio grynumo 6 devynetų sidabro viela (99,9999 % grynumo), užtikrinanti atviresnį ir labiau atskleidžiantį aukščiausios klasės garsą.

The SPU Meister Silver G MkII has been improved on coil winding material, stylus and magnet.

The cartridge has been outfitted with high purity multi-conductor 6–nines Silver wire (of a purity of 99,9999 %) for a more open and revealing high end presentation.
The nude elliptical stylus tip mass has been decreased by a factor of more than 50%, resulting in increased tracking ability and reproduction of microdynamic detail.
The generator system has been revised to produce a slightly higher output to ensure compatibility with a wider range of moving coil transformers and active MC preamplifiers.

SPECIFIKACIJOS

• Output voltage at 1000 Hz 5cm/sec - 0.3 mV
• Channel balance at 1 kHz  < 1 dB
• Channel separation at 1 kHz  > 20 dB
• Channel separation at 15 kHz  > 10 dB
• Frequency response 20 - 20,000 Hz  +2/-1 dB
• Tracking ability at 315 Hz at recommended tracking force *)  > 70 μm
• Compliance, dynamic, lateral - 8 μm/mN
• Stylus type - Nude Elliptical
• Stylus tip radius - r/R 8/18 μm
• Tracking force range - 3.0-5.0 g (30-50 mN)
• Tracking force recommended - 4.00 g (40 mN)
• Tracking angle - 20º
• *) Typical value
• Internal impedance, DC resistance - 3 ohm
• Recommended load impedance > 10 ohm
• Coilwire material - Silver, 6-nines
• Cartridge body material - Ground wood and resin composite
• Cartridge colour - Shiny black
• Cartridge Weight - 28 gram
