Produkto aprašymas

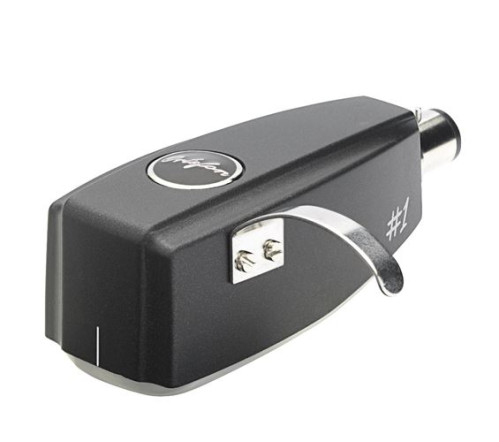

Ortofon SPU #1 S Patefono Galvutė Atkuriamų dažnių juosta 20-25.000 Hz, išėjimo lygis - 0.18 mV | Nemokamas Pristatymas
Tobulai tinkanti Patefono galvutė pradedantiesiems SPU sferoje
The SPU #1 S and SPU #1 E feature:
- Respectively Spherical and Elliptical stylus. The SPU #1 E elliptical stylus profile provides more detailed sound reproduction and expansive imaging.
- High Purity Copper armature windings and terminal leads
- Grinded wood and resin composite housing
These SPU cartridges embodies the essence of the original Moving Coils and are a perfect solution for the playback of both early and modern and contemporary stereo recordings. Excellent price-to-performance ratio.
Techninės Specifikacijos
- Output voltage at 1000 Hz, 5cm/sec. - 0.18 mV
- Channel balance at 1 kHz - 1.5 dB
- Channel separation at 1 kHz - 20 dB
- Channel separation at 15 kHz - 10 dB
- Frequency response - 20-25.000 Hz - ± 3 dB
- Tracking ability at 315Hz at recommended tracking force *) 65 µm
- Compliance, dynamic, lateral - 10 µm/mN
- Stylus type - Spherical / Elliptical
- Stylus tip radius - R 18 µm / r/R 8/18 μm
- Tracking force range - 3.0-5.0 g (30-50 mN)
- Tracking force, recommended - 4.0 g (40 mN)
- Tracking angle - 20°
- *) Typical value
- Internal impedance, DC resistance - 2 ohm
- Recommended load impedance > 10 ohm
- Cartridge body material - Ground wood and resin composite
- Coilwire material - High Purity Copper (OFC)
- Cartridge colour - Black matte
- Cartridge weight - 30 g
