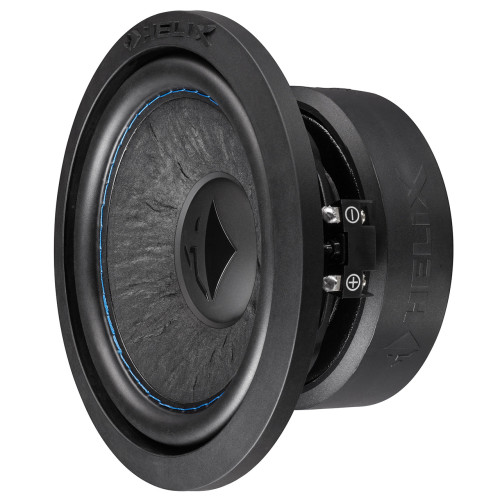

Helix IK W6 (SVC2) Žemų dažnių garsiakalbis automobiliui, RMS Galia 150 / 300 W, 1 x 2 Ω jautrumas 93.0 dB @ 2.83V / 1m | Nemokamas Pristatymas
HELIX IK W6
Rich bass out of compact dimensions
The chassis of the K subwoofer series can all be used in very compact enclosures in which they perform magnificently with exceptional bass performance. Especially when it comes to using the available space in the vehicle as good as possible due to an individual enclosure design, these woofers open up completely new possibilities for installation without making any acoustic compromises.
Clever down to the last detail
The extremely stiff cone made of hand-scooped paper fibers in connection with the heavy-duty driver system not only converts amplifier power easily and without compression effects into loads of sound pressure, but also scores sonically with subtle beats.
Flexible connection
Designed as a 1 x 2 Ohms (SVC2) or 2 x 2 Ohms (DVC2) variant, you can find the right low bass specialist for any amplifier configuration to get the maximum performance out of it.
"All inclusive" for the do-it-yourselfer
In addition, the solid protective grille and gasket are also included.
For optimal bass performance in DIY installations you can find recommendations for sealed and vented enclosures with all parameters such as net volume, port tuning frequency as well as DSP settings in our technical data sheet.
Features
- 1 x 2 Ohms single voice coil
- Powerful magnet system for compact vented enclosures
- Extremely stiff, hand-scooped paper cone
- Double ventilated voice coil for minimum compression effects and high power handling
- Long-excursion rubber surround for highest mechanical rating
- Gold-plated terminals for maximum conductivity
- Rugged magnet cover with HELIX lettering for perfect magnet protection
- Grille and gasket included in delivery
Technical data
| IK W6-SVC2 – 1 x 2 Ohms | ||
| Power handling RMS / Max. | P | 150 / 300 Watt |
| Impedance | Z | 1 x 2 Ω |
| DC resistance | Re | 2.0 Ω |
| Resonance frequency | Fs | 48 Hz |
| Mechanical Q factor | Qms | 3.85 |
| Electrical Q factor | Qes | 0.33 |
| Total Q factor | Qts | 0.30 |
| Compliance | Cms | 544 μm/N |
| Equivalent air volume | Vas | 11.4 L |
| Force factor | B*I | 6.4 Tm |
| Sensitivity | SPL | 93.0 dB @ 2.83V / 1m 87.0 dB @ 1W / 1m |
| Cone area | Sd | 123 cm² |
| Moving mass | Mms | 23 g |
| Cone material | Hand-scooped paper cone | |
| Mechanical resistance | Rms | 1.66 kg/s |
| Voice coil diameter | ø | 37 mm |
| Voice coil winding height | 18 mm | |
| Max. linear excursion | Xmax | +/- 6.0 mm |
| Outer diameter | ø | 164.2 mm / 6.46" |
| Installation diameter | ø | 132.5 mm / 5.22" |
| Installation depth | 74.3 mm / 2.93" | |
| Recommended enclosure | ||
| Vented box | ||
| Net volume | 7 L | |
| Port diameter | ø | 50 mm |
| Port area | 20 cm² | |
| Port length | 34 cm (angled port) | |
| Port tuning frequency | Fb | 45 Hz |
| Lower limiting frequency (-3dB) | 43 Hz | |
| Recommended DSP settings | Recommended "self-define" highpass filter with 45 Hz cut-off frequency and Q = 1.2; additional EQ filter 80 Hz / Q = 1.0 / +1.0 dB |
Scope of delivery
1 x Subwoofer HELIX IK W6-SVC2
1 x Grille
1 x Gasket
1 x Data sheet
