Bass Habit Elite E28DSP procesorius, Dažnių juosta 10Hz-23kHz @ -1dB  | Nemokamas Pristatymas

Įperkamas ir galingas garso procesorius tiems, kurie nori tiksliai sureguliuoti savo automobilio garso sistemos garsą, ypač esant didesnėms sąrankoms!

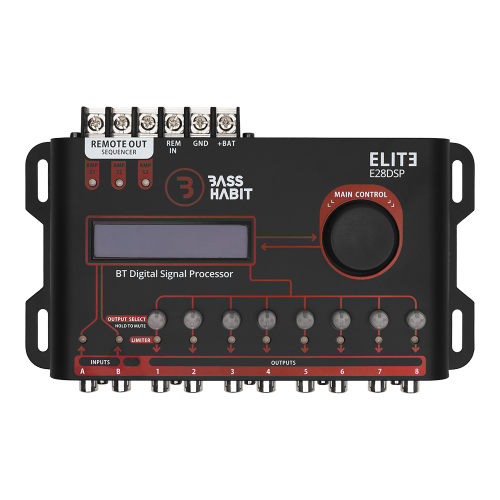

The Elite E28DSP from Bass Habit is an audio processor in a class of its own. With eight programmable RCA outputs and advanced fine-tuning features, this 8-channel DSP promises to take the listening experience in your car to the next level. The control center is a knob on the top, complemented by a clear display on the screen - no complicated software or app is required. Versatility ranges from subwoofer, mid-bass or 4-way system customization to Bluetooth pairing and selectable frequency settings. With the Elite E28DSP, you have full control over the sound in your car system in your hands.

Technical data

• 8-channel DSP
• Channels 8 outputs (RCA), 2 inputs (RCA)
• Number of input channels: 2x RCA & Bluetooth
• Number of output channels: 8
• Graphic equalizer: 15 bands, gain ± 12 dB
• Presets for the graphic equalizer: 12
• Parametric equalizer: 1 input + 1 per output, gain ± 12 dB, Q-factor 0.4 to 10.0
• Crossover with variable frequency: Butterworth 12/18/24/36/48 dB / Oct Linkwitz-Riley 12/18/24/36/48 dB / Oct
• Crossover presets: 11
• Routing between inputs and outputs: A, B or A + B (stereo/mono)
• Alignment: 0 to 8ms (275cm) - step 0.0145ms (0.5cm)
• Phase reversal: 0º or 180º
• Limiter: Threshold -24 to 0dB / Attack 0.1 to 100.0ms Release 1 at 1600ms / Attack / Release
• Output gain: -45 to + 15dB
• Master level: 0 to 100%
• Memory locations Save / Load: Working memory (automatic storage) + 4 memory locations
• Copying channels: Copying settings between output channels
• Security: 4-digit security password
• Frequency generator: 10Hz to 22kHz
• Frequency sweep: Freq. start and end 10Hz at 22kHz level -60 to 0dB / speed control
• Pink noise generator: 10Hz to 22kHz, level -60 to 0dB
• Screensaver: Editable text with 15 positions
• Languages: English, Portuguese and Spanish
• Latency time: 1.08ms
• Input impedance: 10 kΩ
• Output impedance: 47 Ω
• Maximum input voltage: 2 V RMS (5.6 Vpp (+ 8.2 dBu))
• Maximum output voltage: 2 V RMS (5.6 Vpp (+ 8.2 dBu))
• Input saturation display: 1 per entry
• Output saturation indicator: 1 per output (with limiter connection)
• Signal-to-noise ratio: >94dB
• Total harmonic distortion (T.H.D.): 0.01%
• Channel separation: >80dB
• Frequency response: 10Hz-23kHz @ -1dB
• Power supply: 10V-16V DC
• Maximum current consumption: 0.5A @ 14.4V DC
• Dimensions (W x H x D): 37 x 200 x 101 mm
• Weight: 475 g

An affordable and powerful audio processor for those who want to fine-tune the sound of their car audio system, especially in larger setups! This DSP is packed with smart features that make it easy to configure and customize the sound to your liking. On the back of the E28DSP, you’ll find 8 RCA outputs that are individually programmable. The settings are made entirely with the knob on the top of the unit and the screen – no app or software is needed! With the E28DSP, you get an incredibly flexible audio processor that gives you complete control over the sound in your car system.

With 8 RCA outputs that are fully programmable, the E28DSP offers almost infinite connection possibilities. You can choose to run the outputs however you want, as sub-only, mid-bass, tweeter, full-range, or as a 4-way system with sub, mid-bass, midrange, and tweeter. Or why not run an active 2-way system in the front of the car, full-range speakers in the rear doors, and a subwoofer enclosure? Only your imagination sets the limits on how you can adjust your sound!

The settings are easily made with the built-in LCD screen and the Main Control knob. No computer or app is needed to make settings. You don’t have to deal with driver installations and sit with a laptop in the car – just turn and press Main Control to select and confirm your choices.

The E28DSP also has a built-in Bluetooth receiver, making it easy to connect your phone – without having to have the device connected to a car stereo. In addition, there are 2 RCA inputs, so another source or car stereo can be connected.

With selectable high-pass and low-pass filters (Butterworth or Linkwitz-Riley 12/18/24/36/48 dB per octave) and a graphic EQ with 15 bands per channel with frequencies from 25 to 16,000 Hz (+/- 12dB), you have complete control over the sound. In addition, there are 12 EQ presets for different sound styles and a parametric EQ that allows you to adjust one EQ band per output (+/- 12dB) with Q-value adjustable from 0.4 to 10.

With phase control on all outputs (0 or 180 degrees), time alignment 0-8 ms, and three sequential remote outputs that can be programmed for different start times of the power amps, you have complete control over how the sound in the car sounds. In addition, there are 4 memory locations to save different settings.

Bass Habit E28DSP is primarily a DSP for those who want to build a massive system with many power amps driving mid-bass drivers, tweeters, hat shelf speakers, and a subwoofer box in the trunk. It is, of course, possible to complement with a high-to-low-level converter to use the E28DSP in a discreet sound system with the car’s original speakers.
