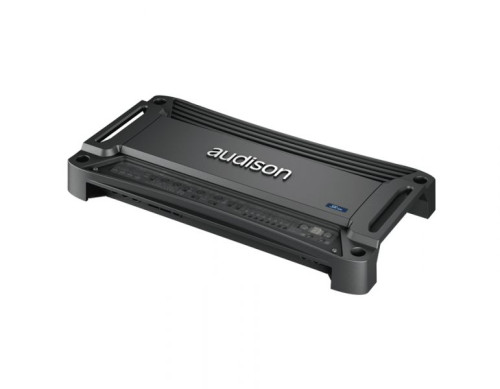

Audison SR1Dk 1 kanalo skaitmeninis stiprintuvas 1200W

(RMS) @ 14.4 VDC
1Ch 600Wx1 (4Ω)
1Ch 940Wx1 (2Ω)
1Ch 1200Wx1 (1Ω)

(4Ω,≤1%THD+N, 14.4 Volts): 520W x 1 Ch
S/N ratio (ref. 1W output):
520 W Channel: 56 dBA

Įėjimai

Input: Pre / Speaker
Out: Pre out / Master / Slave

Filtrai
Filter Lo-pass On/Off 50-220 Hz @ 24dB /Oct.
Subsonic: OFF 40 Hz @ 24dB /Oct. Boost +6 dB; +3 dB; OFF / @ 45 Hz
Equalizer: 0 + 9 dB @ 40 - 90 Hz Phase Control: Continuos 0° - 180°
Sub remote volume control: OFF + 6dB

Amp Chain mode (Two Linked Amplifier)

Output Power (RMS) @ 14.4 VDC, 1% THD, 100 Hz
1800W 4Ohm
2400W 2Ohm

Išmatavimai
BxLxHmm 213x408x53,5
Weight (kg): 3,60
