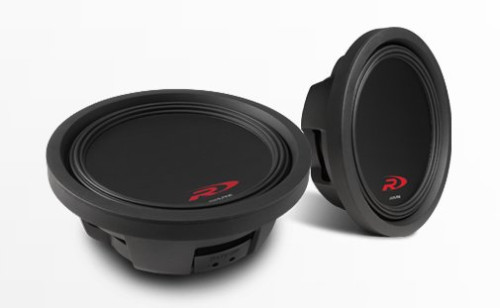

ALPINE SWR-T10 Žemadažnis garsiakalbis 600w

Vartotojo vadovas EN

Gamintojo puslapis

• CEA-2031 Power Rating: 600W
• Power Range: 300 - 600 Watts
• RMS Power Handling: 600W
• Peak Power Handling: 1800W

• Mounting Depth: 82 mm (3.25'')
• Mounting Diameter: 231 mm (9.1'')
• Displacement: 0.07 cu. ft (Front Mount)
• Added Volume: 0.04 cu. ft. (Reverse Mount, Magnet Out)

• Frequency Response: 28Hz - 200Hz

• Material: Aluminum
• Design: Structural Parabolic w/ Force Transfer Assembly

• Material: Injected Molded Santoprene
• Design: FEA-Optimized High Amplitude Mutli-Roll (H.A.M.R.) (Patent Pending)

• Material: Thermoplastic Elastomer (TPE)
• Design: Co-Molded Regressive w/ Integrated Tinsel Leads

• Material: 220C Edge-Wound Copper Ribbon Wire
• Design: Oversized 100mm (4'') Underhung Voice Coil

• Pole Geometry: FEA-Optimized Dual Compound Radius Curve w/ Pass Through Gap Design (Patent #6,639,993, 2 Patents Pending)
• Configuration: Radial Vented VC Heat Sink & Shorting Sleeve w/ Airflow Management System (Patent 7,634,101)

• Material: Cast Aluminum
• Design: Direct-Couple Shorting Sleeve/Heatsink and Frame Design

• Layout: One Side
• Design: Heavy Duty Gold-Plated Insert Block Terminals

• Design: Woven Spider Integration Design

• Design: Concealed Mount Gasket System (US Patent #7,760,900)
