Produkto aprašymas

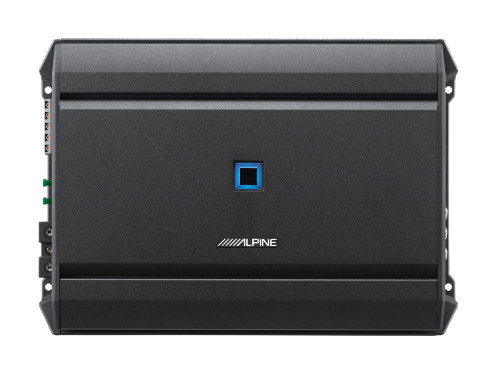

Alpine S-A55V 5-kių kanalų Stiprintuvas Max Galia: 1100W (4 x 60W + 1 x 300W @ 2 Omai) galios suvartojimas 14.4 V.DC (9 - 16 V) Įėjimo jautrumas (RCA įėjimas): Hi: 0.5 - 10 V Lo: 0.2 - 4.0 V | Nemokamas Pristatymas
Alpine“ pristato naujus S-serijos stiprintuvus, puikiai tinkančius S-serijos garsiakalbiams. D-klasės kategorijoje šie stiprintuvai turi puikų „Vatų už Eurą“ santykį, labai aukštą atsparumą karščiui ir apsaugą nuo perkaitimo.
All Digital Design
Compact and Powerful: the new digital amplification circuit allows high power output while keeping a small footprint. The S-A55V measures just 286mm in width x 204mm in length for easy installation in virtually any vehicle.
Thermal Protection
Along with Alpine’s new intelligent amplifier platform, the new S-Series amplifiers feature an improved heat sink and protection circuit design that eliminates thermal shut-down, for dependable music playback.
One-sided Cable Terminals
The speaker and power cable terminals are conveniently located on the left side of the amplifier to allow a clean installation. The power cable terminals accept heavy gauge cables.
Low/High-Power Speaker Signal Inputs
The 5-Channel RCA speaker signal inputs accept low and high-power signals. This makes it easy to connect the S-A55V directly to your original car stereo, regardless of your head unit’s power output (RCA connectors with open cable leads are available separatly).
Control Your Subwoofer
You can connect the RUX-KNOB2 remote bass knod (optional available) to the S-A55V to controll the subwoofer level straight from your dash (applicable only for channel 5 for subwoofer usage).
High-Pass / Low-Pass Filter
With this filter switch you can assign the amplification channel (pair) to be used for door speakers or a subwoofer. You can then adjust the cut-off frequency for more precise tuning.
Savybės
Install
- Terminal Layout: One side
- Small footprint for easy installation
- Screw terminals (for speaker and power cables)
- Heavy gauge power terminals (AWG 4)
General
- Amplifier Type: Class-D (Digital)
- Channel Design: 5/4/3 Channel
- Thermal Management Control
- Top Mounted LED Power/Status Indicator
- Speaker Level Input with remote turn on
- Crossover: Adjustable Low-pass (LPF) / High-pass Filter (HPF)
- Gain Control: Adjustable
- Bass EQ (subwoofer channel)
- Bass Control: Remote Bass Control (RUX-KNOB2) Ready
Specifikacijos
Max Power Output Ratings
- Total Max Power: 1100W
RMS Power Ratings
- Per Channel into 2 Ohms, 14.4V (≤1%THD+N): 4 x 60W + 1 x 300W
- Per Channel into 4 Ohms, 14.4V (≤1%THD+N): 4 x 40W + 1 x 200W
- Bridged into 4 Ohms, 14.4V (≤1%THD+N): 2 x 120W
Sound Tuning
- Crossover: Variable LPF, 50-400Hz (-12dB/oct )
- Crossover: Variable HPF, 50-400Hz (-12dB/oct )
General
- Power Requirements: 14.4 V.DC (9 - 16 V allowable)
- Input Sensitivity (RCA Input): Hi: 0.5 - 10 V Lo: 0.2 - 4.0 V
- High Level Input with automatic power on
- Cable size: Power Cable AWG 4, SPK Cable AWG 12
- Frequency Response (+0, -3dB: 1W into 4 ohms) for CH-1/2/3/4: 10Hz - 30kHz
- Frequency Response (+0, -3dB: 1W into 4 ohms) for CH-5: 10Hz - 400Hz
- THD+N (@ 10W into 4 ohms): <0.03%
- THD+N (@ 50W into 4 ohms): <0.07%
- Damping Factor: Channel 1/2/3/4: >100, Channel 5: >750
- Signal to Noise (@ 50 Watts into 4 Ohms): >98dB
- Weight: 2.9 kg
Dimensions
- Heat Sink (WxHxD) mm: 286 x 58 x 204
