Produkto aprašymas

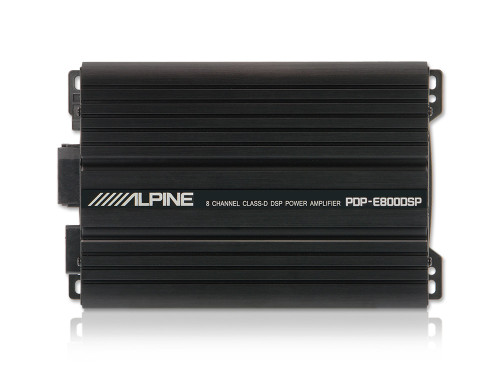

Alpine PDP-E800DSP Skaitmeninis DSP Stiprintuvas 8 kanalai RMS galia 700W naujausias chipas ADAU1452 | Nemokamas Pristatymas
„Alpine“ pristato naują PDP-E800DSP skaitmeninį DSP stiprintuvą. Šis nuostabus "viskas viename" sprendimas leidžia atnaujinti beveik bet kokios transporto priemonės garso sistemos kokybę!
240-band Parametric EQ and X-Over
The Parametric EQ is very easy to use: 30 bands per channel can be simply adjusted with sliders in real-time. The display gives you visual feedback of your adjustments. You can also set the digital X-Over for all 8 channels separately (HP, LP, BP 6/12/18/24dB/30dB, type of filter Butterworth, Bessel, Chebyshev selectable). There is also a Phase Inversion (0,180) possible.
8-Channel Digital Time Correction
Use the graphical user interface to adjust the time delay for each speaker / channel separately. You can adjust the delay by cm, inches or ms. You can also delay whole groups of channels.
Analog routing
With this tool you can setup which input channel is routed to which output channel (in percent). This allows you for example, to create a center channel out of 2 front channels.
Source gain adjustment
You can adjust the gain of each analogue input from -15dB to 0dB to achieve the perfect input sensitivity of your source.
SAVYBĖS / SPECIFIKACIJOS
PAGRINDINIAI DUOMENYS
- 6 high-level inputs for OEM system integration
- 6 analog Pre-Amp inputs (RCA) for aftermarket head unit connectivity
- 1 digital TOSLINK/SPDIF input
- Up to 8 speaker outputs with high power rating
- 110dB signal-to-noise ratio (digital input)
- Channel separation > 75dB
- USB Device input for DSP setup by PC
- Wireless connection with separate module (amp setup) for PC only, or wireless audio streaming (smart phone or PC))
- Class-D amplifier with fully digital audio path
- ADCs by Burr Brown
- Remote app for iOS and Android with basic control functions (Master level, Sub level, Preset recall, source selection)
- Pre-amp output (copy from channel 8, for external sub woofer amp)
AMP
- BurrBrown A/D conversion
- Full digital audio path
- High output power capability
- Total power 700 Watt RMS at 4 Ω
- 100 Watt per channel at 4 Ω
- 120 Watt per channel at 2 Ω
- 200 Watt at 2 Ω (2 channels in parallel mode)
- Advanced diagnostics for each output channels (shortcut, overheat, clipping)
- Start-Stop Engine compatible
- Load Capability: 4 – 2 Ω
- Parallelized output supported
DSP
- Latest Analog Device chip (ADAU1452)
- Up to 8 speaker outputs with independent adjustable output level
- Independent or linkable setups for all output channels
- Delay on each channel up to 14,57ms, 0.01msec steps
- 30-band Graphic Equalizer per channel with configurable frequency, Q (from 1 up to 15) and Gain (-10dB /+10 dB)
- Digital X-Over for each channel (HP, LP, BP) 6/12/18/24dB/30dB, type of filter (Butterworth, Bessel, Chebyshev) selectable
- Phase Inversion (0,180)
- Master Volume (0 – 42dB)
- Sub control (0 - 15 dB)
- Possibility to save/load up to 6 presets on DSP
- Settings can be secured by certificates
- Free adjustable analog routing (example: channel mixing for center channel or 3-way input signal)
- EQ ON/OFF possible (for each channel)
- Delay grouping for easier TCR adjustment (up to 4 groups possible)
- TCR ON/OFF for each channel possible
- TCR help calculation for beginners
- Overview page for all settings
- Live monitor (for battery voltage and amp temperature)
- Turn ON by signal or wire
- Alpine RUX-KNOB2 ready (master volume or sub level)
- Additional gain on analog input (+6; +9db ). For sources with lower pre-amp level than 2 Volts
Dimesions
- Dimensions Width 220mm Height 50mm Depth 150mm
- Weight 1.6kg
