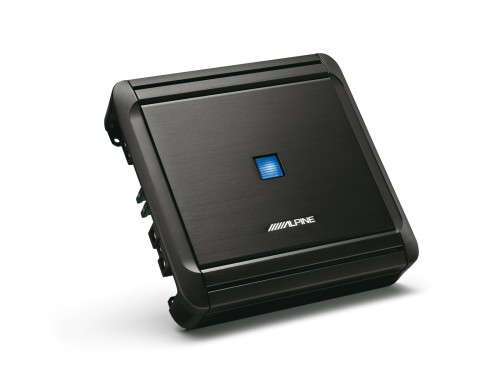

Alpine MRV-M1200 2400W automobilinis garso stiprintuvas

Alpine MRV-M1200 automobilinis garso stiprintuvas

• D klasės stiprintuvas
• Dažnių diapozonas : 7-400Hz
• Maksimali galia : 2400W
• Dažnių juosta : 50-400Hz
• Išmatavimai : plotivs/aukštis/gylis  200 x 55 x 200 mm

Įrodytas garsas


Each V-Power amplifier comes with its very own birth-sheet. V-Power amplifiers are tested and documented to show their true actual output.

Aukšti standartai

The new V-Power products are now Class D digital amplifiers, resulting in a huge efficiency gain versus their predecessors without draining your battery or your pockets. Class-D provides continuous clean power to your speakers, operating at 80% efficiency far greater than conventional Class A or B amplifiers. Translation: Enjoy cleaner bass, even during extreme power demands.

Didelis garsas, mažas įpakavimas

V-Power amplifiers are known for their compact size, but don’t underestimate their power capacity. Although they have a 40% smaller footprint than their predecessors, they produce the same amount of power as before. Get the power you need, even if you have limited installation space.

DUAL FEEDBACK MODULATION

Dual internal error correction technology – which had previously only been available in the PDX and X-Power amplifiers, is now integrated in V-Power mono amplifiers. The audio input signal is analysed, compared, and corrected twice dynamically as the signal is processed through the amplifier. The result is amplifiers with the widest frequency response, higher damping factor, and lowest noise in its class.

Lengva instaliacija

The V-Power's 4-channel speaker level inputs connect directly to any head unit, without the need for external converters. This makes the V-Power amplifiers ideal for upgrading factory and aftermarket systems. The flush mount controls make for easy installation. The terminal covers conveniently snap-on without the need for additional tools, to protect the wiring connections while creating a clean, finished appearance.

Savybės

• Amplifier Type: Class-D (Digital)
• Channel Design: 1 Channel (Mono)
• Power Supply Design: DC-DC PWM Power Supply
• Power Supply: MOSFET
• Pre-Amp Stage: Discrete
• Final Outputs: Power MOSFET
• Crossover: Variable Lowpass Filter
• Gain Control: Continuously Adjustable Gain Control
• Bass EQ: Bass EQ Function
• Remote Turn On: Remote Sensing Function (for Speaker Level Input)
• Current Protection: Over-Current, Over-Voltage, Under-Voltage and Thermal Protection
• Board Circuitry: S.T.A.R. Circuit
• RCA Output: Non-Fading Pre-Amp Output (4 Volts)
• Speaker-Level Inputs: 4-channel Speaker Level Inputs
• Power Indicator: Top Mounted Blue LED Power Indicator
• Thermal Control: Multi-stage Power Limits
• Power Requirements: 14.4 V.DC (11-16V allowable)
• Input Sensitivity (RCA Input): 0.15 - 4.0 V
• Input Sensitivity (Speaker Level Input): 0.4 - 10 V
• Input Impedance: >10k ohms
• Frequency Response (+0, -3dB: 1W into 4 Ohms) for Subwoofer: 7 -400 Hz
• Damping Factor (10W into 4 Ohms at 100Hz): >750
• Signal to Noise (1W into 4 Ohms): >85 dB
• Signal to Noise (Rated Power into 4 Ohms): >105 dB
• Preamp Output: 4.0V Max.
• Remote Level: -20 to 0 dB
• Weight: 1.8 kg

Instaliacija

• Terminal Layout: Two-Sided
• Screw Mount / Wire Cover: Integrated Wire and Mounting Screw Terminals

Maksimali galia

• Total Max Power: 2400 W

RMS

• Per channel into 4 Ohms: 600W RMS x 1 (14.4V at <1% THD+N)
• Per channel into 2 Ohms: 1200W RMS x 1 (14.4V at <1% THD+N)

Garso tiuningavimas

• Crossover Frequency (LPF): 50 - 400 Hz, -24dB/oct.
• EQ (Equalizer): 0 to +12dB, fc=50Hz

Išmatavimai

• Foot Print (WxHxD) mm: 200 x 55 x 200 mm
• Heat Sink (WxHxD) mm: 165 x 55 x 200 mm
