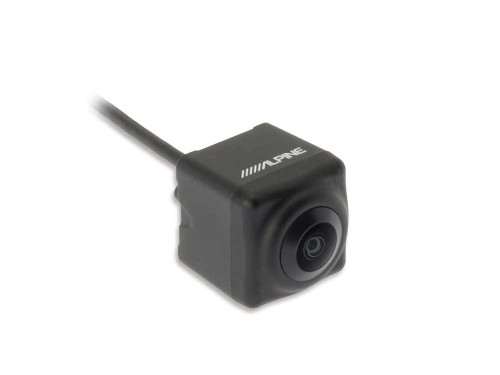

Alpine HCE-C1100D HDR galinio vaizdo kamera CMOS spalvų balansų valdymas rezoliucija 330 TV Lines | Nemokamas Pristatymas
Informacija apie produktą
Alpine HDR Kameros
Alpine’s all new HDR cameras are simply amazing and offer many new technologies that make manoeuvring your vehicle easier and safer.
- High-resolution camera for great picture quality and high details
- Amazing night-view capabilities in low-light environments
- Fast exposure adjustment when moving from dark to bright environments (for example underground parking, tunes, etc)
- New, small connectors for easy installation of camera and cables
Distance Guides
This camera includes convenient distance guides that can be fully adjusted to match the width of your vehicle. This makes
parking safer and more convenient compared to a regular rear-view camera.
Works with Alpine products featuring Direct Camera Input
This high performance camera connects via cable directly to the head unit (no black-box) for quick and easy installation.
Sąvybės ir specifikacijos
FEATURES
General
- Rearview Image
- Direct Camera Connection
- Vehicle Reverse Signal Synchronization
Camera
- Mirror Image Output
- Color CMOS Image Sensor
- Automatic Exposure Adjustment
- Automatic White Balance Adjustment
- Internal Synchronization
SPECIFICATIONS
Dimensions
- Camera: 23.6x 23.6x 24.0mm (excluding projection on the rear)
- Camera Cable Length: 0.5m
- Camera Extension Cable Length: 10.5m
General
- Power Requirement: 6.0 V.DC
- Negative Ground
- Max. Power Consumption: 0.5W
- Weight Camera: 27g (including cable)
Camera
- Output Image: Mirror Image, Composite Video (NTSC Color Signal System)
- Image Output: 1 Vp-p (75 Ohms)
- Image Sensor: 1/3.7 inch CMOS Image Sensor, Aspect Ratio 4:3
- Effective Number of Pixels: 640 (H) x 480 (V), Approximately 0.3 Mega pixels
- Lens Focal Length: f=1.34mm
- Lens Brightness: F=1:2.0
- Angle of Field: Horizontal = 131°, Vertical = 103°
- S/N Ratio: 40.5 dB or more
- Resolution (Horizontal. Center Area): 330 TV Lines
- Operating Temperature: -30°C - +70°C
- Illumination Range: Approximately 1.5 to 100klx
